16 Channel ABB PLC Module 24 Volt Digital Output DO801 3BSE020518R1 ABB

Product Overview:

The DO801 is a 16 channel 24 V digital output module for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are in one isolated group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.

Features and benefits

16 channels for 24 V d.c. current sourcing outputs
1 isolated groups of 16 channels
Output status indicators
OSP sets outputs to predetermined state upon communication error
Short-circuit protection to ground and 30 V
Over-voltage and overtemperature protection
Process and power connection via detachable connectors

ABB:

1) AC800M series controller LO module

2) AC800F series controller module

3) AC31 series controller module

4) 800xA series modules

5) Bailey INFT 90 module

6) DSQC robot module spare parts

7) Advant OCS system spare parts

8) H&B Freelance

ABB Advant OCS

ABB Advant-800XA

Bailey Inft 90 and Net 90

ABB Robots

ABB Synpol D

ABB H&B Contronic

ABB H&B Freelance 2000

ABB Master

ABB Pro control P14

ABB Drives

More models:

16 channel ABB PLC Module

24 Volt DO801 3BSE020518R1 ABB

Digital Output DO801 3BSE020518R1 ABB

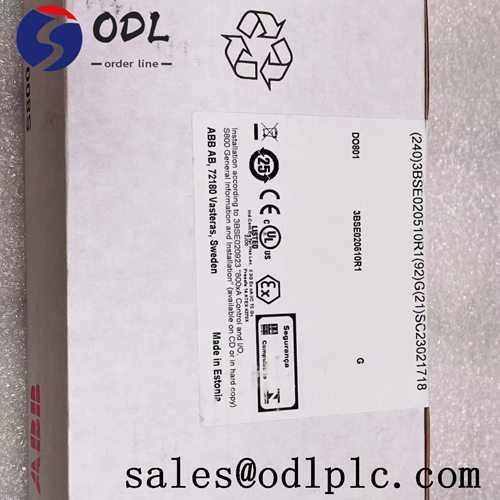

16 Channel ABB PLC Module 24 Volt Digital Output DO801 3BSE020518R1 ABB Images
