O5H500 IFM Diffuse Reflection Sensors With Background Suppression

Short Description:

The O5H500 from IFM is a high-precision diffuse reflection sensor that ignores backgrounds beyond 300 mm. Red light, IO-Link and IP67 sealing make it ideal for reliable presence detection on dark, glossy or uneven surfaces.

Key Features & Benefits:

• Background suppression up to 300 mm
• Sensing range: 5 … 300 mm (white 90 % reflectance)
• Repeatability: 3 mm, Resolution: 1 mm
• Class 1 red light emitter (630 nm) – eye-safe
• Two switching outputs (PNP/NPN selectable)
• IO-Link 1.1 COM2 for diagnostics & remote teach
• Compact M18 plastic housing, IP67 & IP69K
• Operating temperature –25 °C … +60 °C
• Certified: CE, UL, RoHS

Technical Specifications:

Manufacturer: IFM Electronic
Part Number: O5H500
Series: O5H
Sensing Principle: Diffuse reflection with background suppression
Light Source: Red LED 630 nm, Class 1 (IEC 60825-1)
Supply Voltage: 10 … 30 V DC
Current Consumption: < 20 mA (24 V)
Switching Frequency: 1 kHz max.
Response Time: 0.5 ms
Housing Material: PBT/PC, M18 threaded barrel
Connection: M12 4-pin connector
Protection: IP67, IP69K (IEC 60529)
Shock/Vibration: 30 g / 10 g (EN 60068-2-27/6)

Other Hot Brands:

1) TRICONEX(8111,3008,3625,3805E.3721,3700A 4351B...)

2) BENTLY NEVADA(3500/42M ,3500/22M,3500/95.3500/05...)

3) HIMA(F3330,F3236 ,F6217,F7126,F8621A....)

4) FOXBORO(FBM203,FBM204,FBM217,FMB231...)

5) Allen-Bradley (1756,1785,1771,1746,1769..)

6) ABB (DSQC, BAILEY .....)

7) GE(IC693,IC697,IC695,IS200,DS200)

8) BACHMANN(CM202,DI232,MPC240,NT255,AIO288...)

9) ICS (T8403,T8431...)

10)Honeywell(3300,3500...)

11)Schneider(QUANTUM,MODICON...)

More models:

compact Lenze Parts

smooth Lenze Frequency Inverter

high efficiency Lenze module

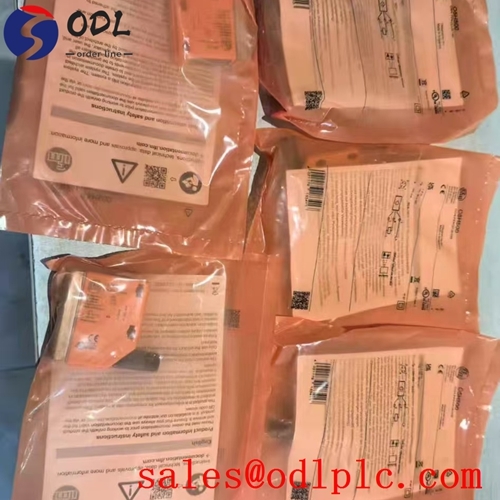

O5H500 IFM Diffuse Reflection Sensors With Background Suppression Images
